    How to replace the saddlebag key cylinder...
    on: Feb 02, 2020, 04.31 pm
    Feb 02, 2020, 04.31 pm
    I did this job with a suitcase that I bought second hand to have it stored as a spare.

    When I received it, I saw that it had some broken pieces, because of some accident or fall.

    So now I will prepare to repair it and make the broken parts.

    NOTE: It is not possible to replace the cylinder of the keys of the suitcases without disassembling the two halves.

    The disassembly is very similar to the disassembly of the two halves of the Top Case.

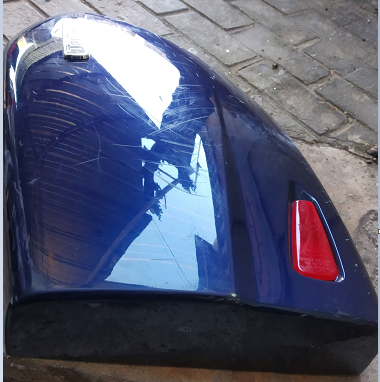

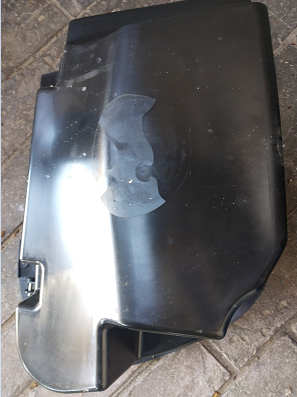

    1 - Remove the cover that is painted

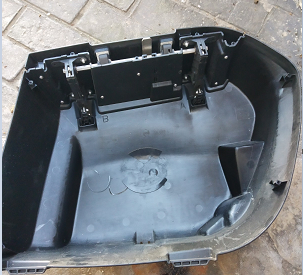

    2 - Once the painted lid is removed, with an 8 mm base wrench, remove the 4 nuts and we will have half of the suitcase out.

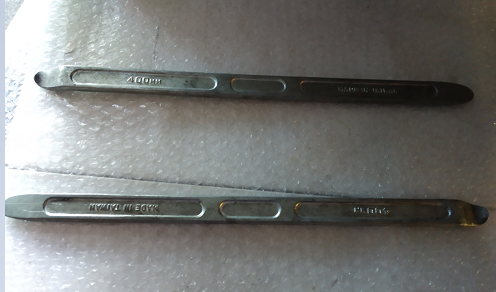

    3 - Once we have half of the back of the suitcase, we can work well. So now we have to catch and give a lot of hot air through the central part both inside and outside. With something that is strong to leverage, I have used the keys to remove the tire covers, because on the one hand they are curved and do not slide to any side.





    A lot of patience that going out will come out.

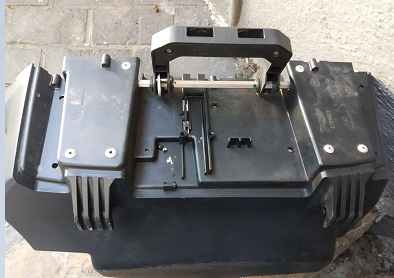

    Once we have them off we find this aspect:

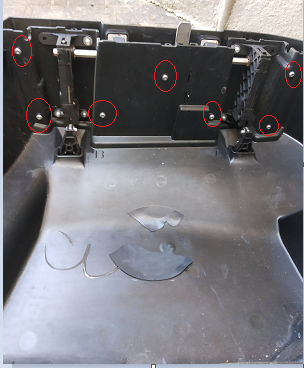

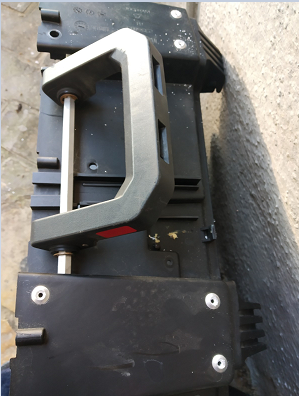

    Now we will remove the 7 screws seen in the photo.

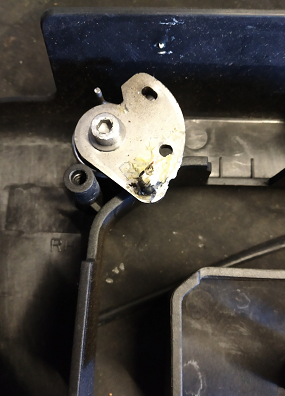

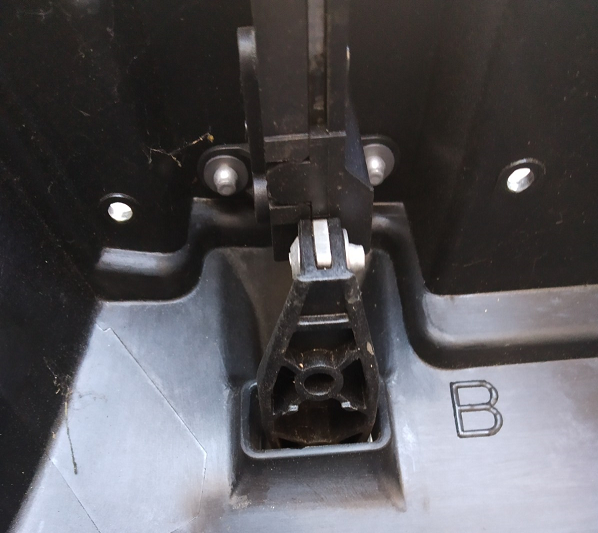

    Once the screws are removed, we remove the cover of the key and we already have the screw where the key cylinder will come out.



    This is all, for the replacement of the key cylinder.

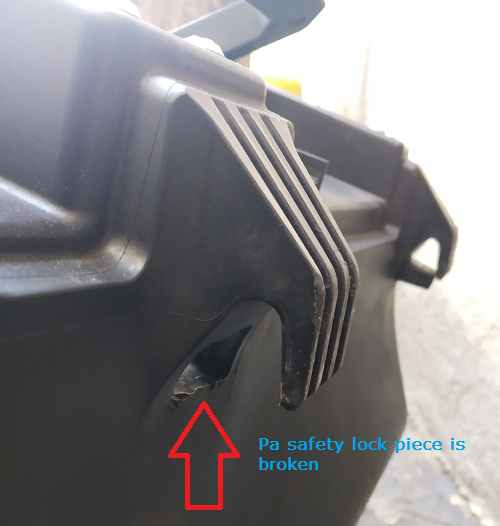

    Now I detail what I have found match in case any of you happened the same as the suitcase I bought second hand.

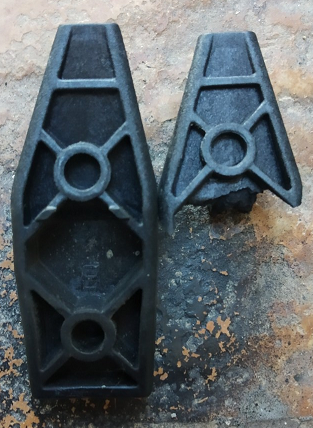

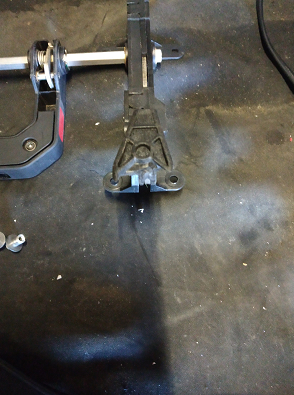

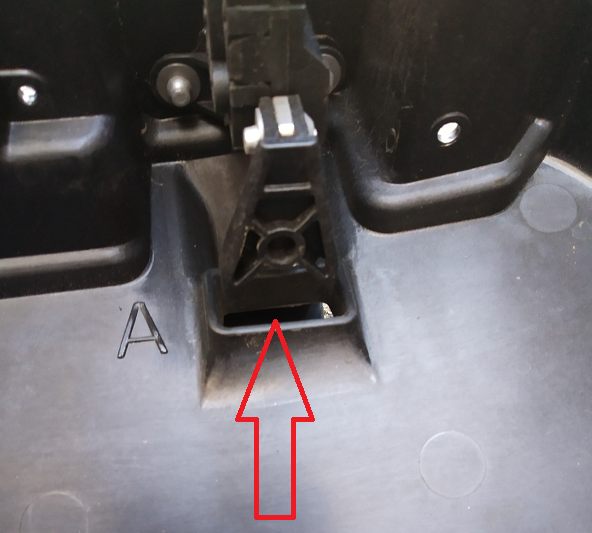

    Broken plastic parts:









    When I have time I will make a piece to replace the one that has broken.

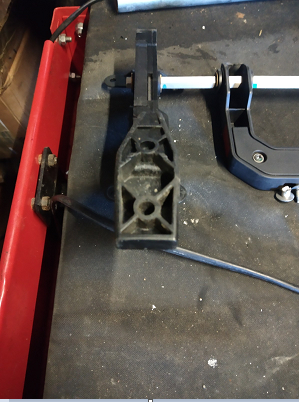

    The other piece, in good condition:

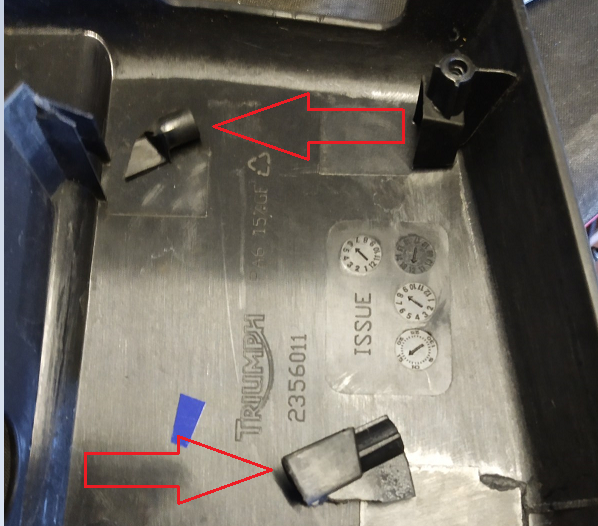

    It also has two broken pivots of the top cover where the key goes:

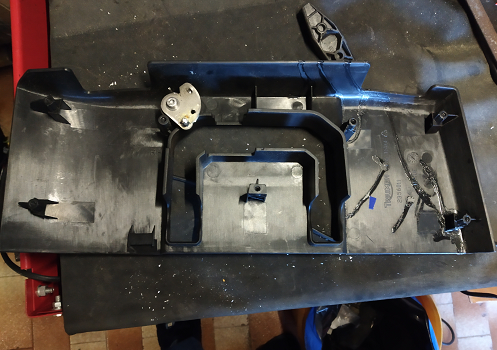

    Now the pivots are hooked and ready to put some black rubber silicone:



    I hope that this little tutorial will help someone who is in the situation of replacing the cylinder of the suitcase key.
    Last Edit: Feb 02, 2020, 04.37 pm by digital
    Only motorcyclists know why dogs stick their head out the car window.


  • Offline trophied   us

    • Trophy God  ‐    4965
    • *****
      #1

    Offline trophied

    • Trophy God
    • *****
    • Posts: 4965
    • Bike: 2013 Trophy SE
    • City / Town: New Braunfels, Tx
    • Country: us
    Re: How to replace the saddlebag key cylinder...
    Reply #1 on: Feb 02, 2020, 05.32 pm
    Feb 02, 2020, 05.32 pm
    Great report, digital.  Since Triumph claims that the lock cylinders can't be changed we now know that to be a falsehood.  I would wager that with the lock cylinder removed it would even be possible to re-key it to match any other Trophy key pattern.
    Thanks,
    Trophied
    One of the Founding Members of the Twisted Trophies

  • Offline Coconut   gb

    • Trophy God  ‐    10059
    • *****
      #2

    Offline Coconut

    • Trophy God
    • *****
    • Posts: 10059
    • Bike: 2017 Trophy SE
    • City / Town: South Birmingham
    • Country: gb
    Re: How to replace the saddlebag key cylinder...
    Reply #2 on: Feb 02, 2020, 07.08 pm
    Feb 02, 2020, 07.08 pm
    With the Lock Barrel removed, it would just need the sliver cap,
    to be carefully pried off,  ( It is crimped on as shown below ),
    which reveals a steel retaining pin that is extracted
    from the barrel to release the "Pins" ( Wafers ) of the lock.



    The Wafer furthest to the left is the one that retains the Barrel
    by latching into a groove in the Cylinder.

    You would then just need to insert the correct 6 Wafers and their springs, to match up
    with the key you have, push the retaining pin back in, and fix the cap back in place.


  • Offline digital   es

    • Trophy God  ‐    2823
    • *****
    • Topic Author
    • #3

    Offline digital

    • Trophy God
    • *****
    • Topic Author
    • Posts: 2823
    • Trophy SE 1200
    • Bike: digital
    • City / Town: Barcelona
    • Country: es
    Re: How to replace the saddlebag key cylinder...
    Reply #3 on: Feb 02, 2020, 08.32 pm
    Feb 02, 2020, 08.32 pm
    Coconut,
    Very interesting to use the same key. I'll keep it in mind. Thank you
    Only motorcyclists know why dogs stick their head out the car window.


  • Offline digital   es

    • Trophy God  ‐    2823
    • *****
    • Topic Author
    • #4

    Offline digital

    • Trophy God
    • *****
    • Topic Author
    • Posts: 2823
    • Trophy SE 1200
    • Bike: digital
    • City / Town: Barcelona
    • Country: es
    Re: How to replace the saddlebag key cylinder...
    Reply #4 on: Feb 02, 2020, 08.39 pm
    Feb 02, 2020, 08.39 pm
    In the end I have put on the safety lock and I have finished it, I have made it of iron by welding two plates to make the guide and before painting it I have checked it, it works well

    Only motorcyclists know why dogs stick their head out the car window.


  • Offline trophied   us

    • Trophy God  ‐    4965
    • *****
      #5

    Offline trophied

    • Trophy God
    • *****
    • Posts: 4965
    • Bike: 2013 Trophy SE
    • City / Town: New Braunfels, Tx
    • Country: us
    Re: How to replace the saddlebag key cylinder...
    Reply #5 on: Feb 03, 2020, 12.27 am
    Feb 03, 2020, 12.27 am
    Brilliant! :821:
    One of the Founding Members of the Twisted Trophies

  • Offline digital   es

    • Trophy God  ‐    2823
    • *****
    • Topic Author
    • #6

    Offline digital

    • Trophy God
    • *****
    • Topic Author
    • Posts: 2823
    • Trophy SE 1200
    • Bike: digital
    • City / Town: Barcelona
    • Country: es
    Re: How to replace the saddlebag key cylinder...
    Reply #6 on: Feb 03, 2020, 02.30 pm
    Feb 03, 2020, 02.30 pm

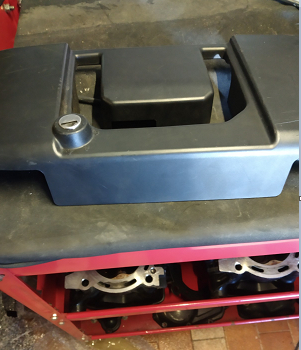

    I already have it mounted and working, I just have to put the radar sensor and it will be completely finished

    Open


    closed
