    new member need help
    on: Apr 16, 2020, 03.30 am
    Apr 16, 2020, 03.30 am
    Hi all and thanks for allowing me into this Forum
    2010 Triumph Thunderbird
    2014 TTSE just bought and wanting to learn more about this bike through reading all the Q & A

  • Offline greatbrit

    • Trophy Junior  ‐    6
    • *
    • Topic Author
    • #1

    Offline greatbrit

    • Trophy Junior
    • *
    • Topic Author
    • Posts: 6
    • Bike: TTSE
    • City / Town: EDMONTON
    Re: new member need help
    Reply #1 on: Apr 16, 2020, 04.07 am
    Apr 16, 2020, 04.07 am
    missing fuse maybe
    whats this wire for
    male end what connects to this , what is it for
    female end what connects to this , what is it for
    the last loose wire i found

    Thanks for any info on these pics , just got the bike and learning as i do inspection before i ride it
    Last Edit: Apr 16, 2020, 04.10 am by greatbrit

  • Offline digital   es

    • Trophy God  ‐    2793
    • *****
      #2

    Offline digital

    • Trophy God
    • *****
    • Posts: 2793
    • Trophy SE 1200
    • Bike: digital
    • City / Town: Barcelona
    • Country: es
    Re: new member need help
    Reply #2 on: Apr 16, 2020, 07.24 am
    Apr 16, 2020, 07.24 am
     :400: to the forum.

    That bluish colored connector should be something optional installed on the bike.
    Only motorcyclists know why dogs stick their head out the car window.


  • Offline Coconut   gb

    • Trophy God  ‐    10005
    • *****
      #3

    Offline Coconut

    • Trophy God
    • *****
    • Posts: 10005
    • Bike: 2017 Trophy SE
    • City / Town: South Birmingham
    • Country: gb
    Re: new member need help
    Reply #3 on: Apr 16, 2020, 09.13 am
    Apr 16, 2020, 09.13 am
    Hi greatbrit and :400: to the Club !

    I do love a challenge !

    As suggested the Light Blue "loose wire I found" in your first Photo,
    is not a Triumph Trophy connector.
    It is likely to be from an after market Intercom, Camera system,
    Heated Gear, or some other communications device.

    A clue for the answers about the other connectors, is your non standard
    Yellow coloured Rear Suspension Unit coil spring !

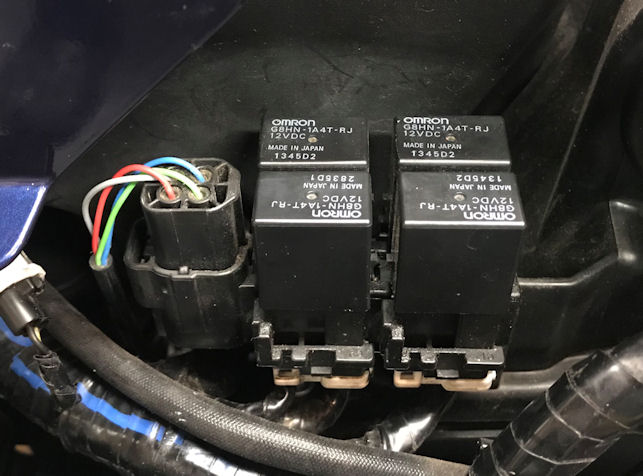

    The Black Plug with Yellow Insert and 4 Pins is the connector for the Rear Suspension Unit
    ( RSU ) Damping Motor.  It would normally be connected on the left side of the bike,
    where you have noticed the four pin socket adjacent to the bank of four Relays :



    From there the wires would be routed across towards the centre of the bike,
    and attached to a clip before running downwards to the RSU Damping Motor.

    I can only assume that your replacement RSU is either not motorised,
    or the Motor is non operational, and has been disconnected.

    Just for information, that "Box" on the right of the bike, labelled "N)Touch" P/N 2057599"
    is the Triumph Electronic Suspension ( TES )Control Module.

    Cheers  :821:
