Triumph Tech News #168 Modified Gear Selector Kit

[GarminDave]

Just to add my $0.02 worth.

Last year I had this modified kit of components fitted to my gearbox.  I have a 2016 bike with 72,000 miles, had it done at 69,138.  I was experiencing a stiff and glitchy engaging of first gear.  After the kit was fitted the changing has been slick and pretty smooth.  I find loading the gear lever prior to change works well.

Having ridden the new Tiger 900 with the special clutchless gear change my TTSE felt clunky and slow to change.  The new system is fast and seamless I loved it.  I think what I'm saying is 'clunky' is a relative term.  After the new components mine felt silky smooth, after riding the new Tiger900 mine felt clunky!

[Coconut]

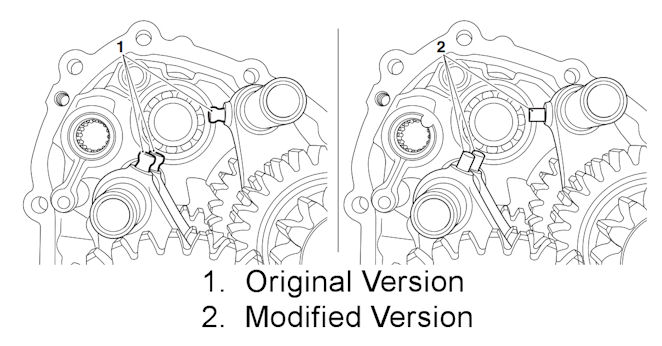

Here is an extract to demonstrate the difference between the orignal version
of Gear Selector Drum and Selector Forks.

Note the original "Mushroom" shape of the Selector Fork engaging dogs,
compared to the plain, and more robust shape of the modified Selector Fork :

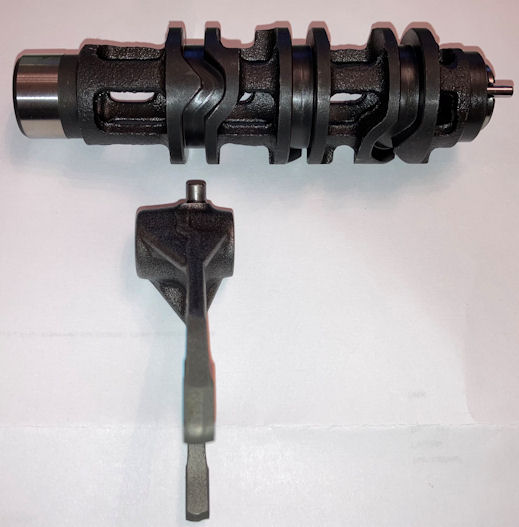

Here's a Photo of the modified Selector Shaft and one of the Output Selector Forks :

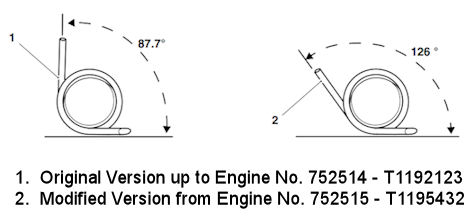

The Detent Springs for the Gear Change mechanism are also changed as shown below :

[Pipwidge]

Originally Posted by Coconut

Further to the below messages, the Modified Selector Drum and Forks Kit ( T1195566 )
which currently has a RRP of GBP £307.22, is currently available via eBay for GBP £199.00 :

TRIUMPH TIGER EXPLORER & TROPHY 1215 GEAR SELECTOR MECHANISM KIT T1195566

If the above Link has expired, the Seller was Destination Triumph, Guildford.

Cheers

I have just had a look at this link!  The price is now £159.20     Thanks Coconut

[thogland]

Wow, Hermy's lists it for US $380.62 (or 277.59 GBP)

[dietDrThunder]

Yep...I can't find this anywhere for under 379 in the US. But, my Trophy shifts fine. I don't expect it to feel like a race bike, but it's not excessively clunky or hard to shift...I guess I'll leave it alone.
