Re: Factory Accessory Power Connector P#A9930122
« Reply #8 on: December 29, 2020, 06:14:06 pm »
Congratulations xviffer !  :028:

I have researched this for the benefit of anyone else,
and am pretty sure that this is the Connector used :

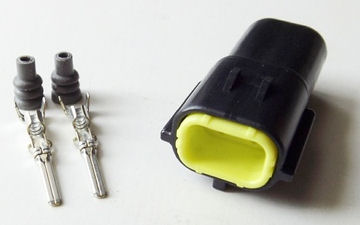

Tyco/AMP Econoseal J Series MK II

The above link is to a US site where the Housing, Pins, Lock and Seals
can be purchased for USD $2.82 + Shipping, and could be used
to make up your own Accessory sub harness.

They are also available from other suppliers such as Mouser, RS Components etc.





Cheers  :821:



« Last Edit: December 29, 2020, 07:16:48 pm by Coconut »

Offline earthman

  • Trophy Master
  • ****
  • Posts: 2084
    • View Profile
  • Country: UK
Re: Factory Accessory Power Connector P#A9930122
« Reply #9 on: December 29, 2020, 08:06:19 pm »
https://www.ebay.co.uk/itm/2-WAY-ECONSEAL-AMP-WATERPROOF-WIRING-ELECTRICAL-MULTI-CONNECTOR-MALE-FEMALE/283613193951?hash=item4208a9e6df:g:ztwAAOSwFx9de256

Just had a quick look for these myself, a fair few suppliers like the one above,.....may look to invest in a box/kit of them, always come in handy when adding lights etc to a vehicle, they sure look better than the bullet connectors that we used years ago. :002:
