location of abs unit and ecu
on:
Mar 12, 2021, 09.26 pm
Mar 12, 2021, 09.26 pm
Hi,
Can anyone tell me where the abs unit and ecu are located on the Triumph Trophy SE please, need to check wiring etc....
Ade52
Trophy Member ‐
69
#1
Ade52
Trophy Member
Posts: 69
Bike: Trophy SE 2013
City / Town: Durham
Country:
Re: location of abs unit and ecu
Reply #1 on:
Mar 12, 2021, 11.50 pm
Mar 12, 2021, 11.50 pm

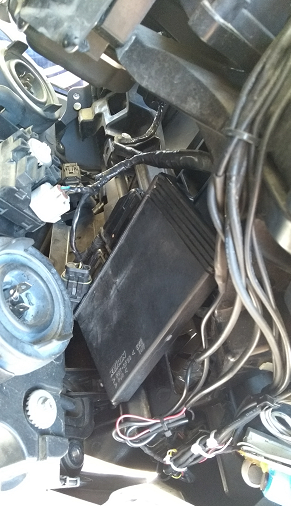

The ECU is behind the dash panel you will see it below the sat nav mounting, after removing the dash plastics. The ABS ECU is next to the Alternator, you will see it on the LHS, if you remove the left side rider foot rest plate. To see the whole ABS unit the tank needs to be removed. Look in Image gallery, you will find images of both units.
flashandy1
Trophy Member ‐
13
Topic Author
#2
flashandy1
Trophy Member
Topic Author
Posts: 13
Bike: Triumph Trophy SE
City / Town: Crowland
Re: location of abs unit and ecu
Reply #2 on:
Mar 13, 2021, 02.46 am
Mar 13, 2021, 02.46 am
Thanks for your help Ade52
digital
Trophy God ‐
2831
#3
digital
Trophy God
Posts: 2831
Trophy SE 1200
Bike: digital
City / Town: Barcelona
Country:
Re: location of abs unit and ecu
Reply #3 on:
Mar 13, 2021, 08.30 am
Mar 13, 2021, 08.30 am
A picture is worth a thousand words.
Only motorcyclists know why dogs stick their head out the car window.
digital
Trophy God ‐
2831
#4
digital
Trophy God
Posts: 2831
Trophy SE 1200
Bike: digital
City / Town: Barcelona
Country:
Re: location of abs unit and ecu
Reply #4 on:
Mar 13, 2021, 08.37 am
Mar 13, 2021, 08.37 am
Only motorcyclists know why dogs stick their head out the car window.
Coconut
Trophy God ‐
10062
#5
Coconut
Trophy God
Posts: 10062
Bike: 2017 Trophy SE
City / Town: South Birmingham
Country:
Re: location of abs unit and ecu
Reply #5 on:
Mar 13, 2021, 08.42 am
Mar 13, 2021, 08.42 am
flashandy : What's the problem ?
HAVE YOU HAD YOUR IGNITION WIRING SAFETY RECALL INSPECTION DONE YET ?
( Click for details )
flashandy1
Trophy Member ‐
13
Topic Author
#6
flashandy1
Trophy Member
Topic Author
Posts: 13
Bike: Triumph Trophy SE
City / Town: Crowland
Re: location of abs unit and ecu
Reply #6 on:
Mar 13, 2021, 03.15 pm
Mar 13, 2021, 03.15 pm
Hi, Thanks for the pics Digital.
Hi Coconut,
Where do I start.....I am having the rear suspension replaced in a week or two as this was my bikes only failure on its MOT...albeit a very expensive fail...
Since the suspension broke I have been having some issues...but I don't think they are related?
I started getting warning lights on the ABS, TTC and the engine management light would come on and I would get the TTC disabled warning.
Then a few days later the speedo and fuel gauge would only work when the bike had tried to go through its ABS AND TTC set up, failed and gave me the warning on the screen. Until the warning was shown the speedo and fuel gauges (digital and the bars) would not work.
Now the abs light just flashes and I have no speedo or fuel gauge that works, digital or otherwise but the engine light is currently off.
The only DTC code is P1521 "Lost communication with ABS" nothing for the speedo, fuel gauge or even the suspension (I have Dealertool) hence wanting to know where the ABS and ECU units are located to check wiring etc.
Any ideas or help would be much appreciated......
PhilInAthens
Trophy Pro ‐
295
#7
PhilInAthens
Trophy Pro
Posts: 295
Bike: '14 Triumph Trophy
City / Town: Athens, GA
Country:
Re: location of abs unit and ecu
Reply #7 on:
Mar 13, 2021, 03.55 pm
Mar 13, 2021, 03.55 pm
Flashandy1 - The TTSE seems to be very voltage sensitive with weird gremlins showing up at (in my eyes) minimal voltage deviations. I don't know the history of your battery, but I would start there. (Assuming you haven't already, of course.) Check connections, battery health, etc. If your battery has some age on it, you might want to consider replacement.
