Re: Has Anyone Changed from Orig Cruise Control Switch to the Updated
« Reply #8 on: April 27, 2021, 11:29:24 pm »

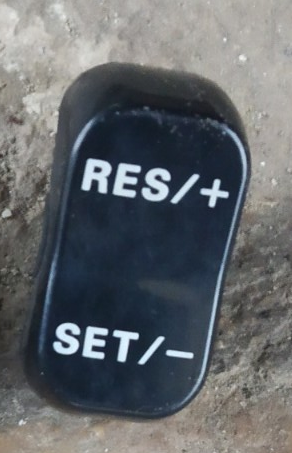

It is only about replacing this plastic of TTSE 2012-2015

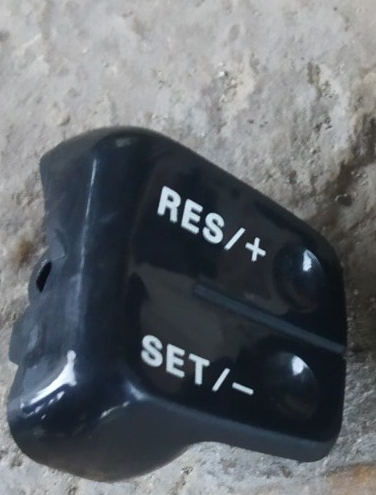

for this other from TTSE 2015 onwards

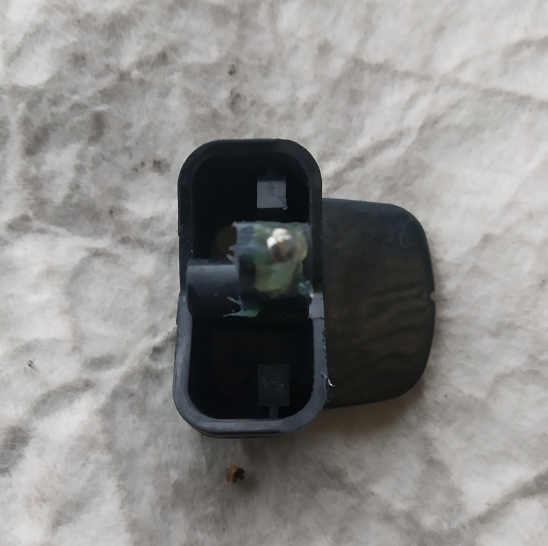

We see that inside they have a spring with a ball

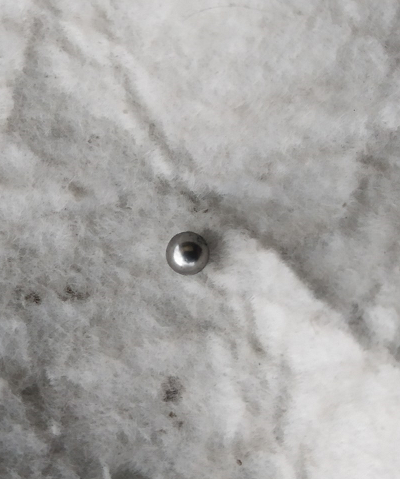

Be very careful with that ball !!!
Before reinstalling it, grease the plate where the ball is located well with grease, so it will be hooked and it will be somewhat more difficult for you to lose it.

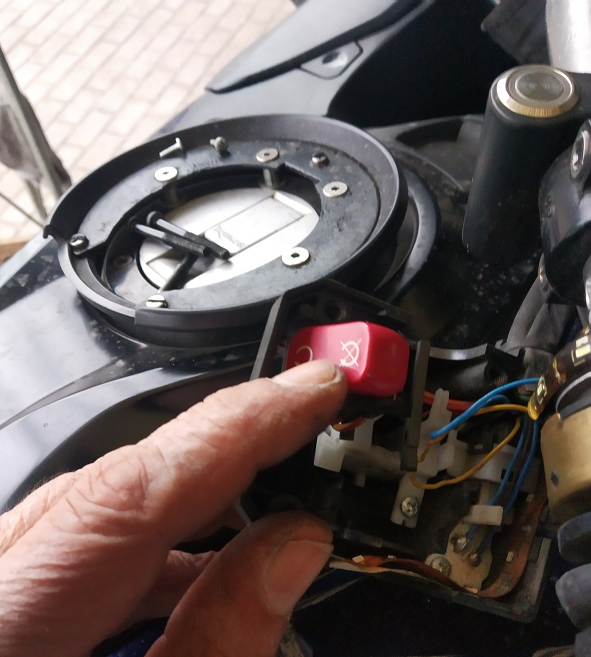

To facilitate the disassembly and assembly of the cruise control button, remove the screw that holds the engine stop safety switch and remove that red button as shown in the photo

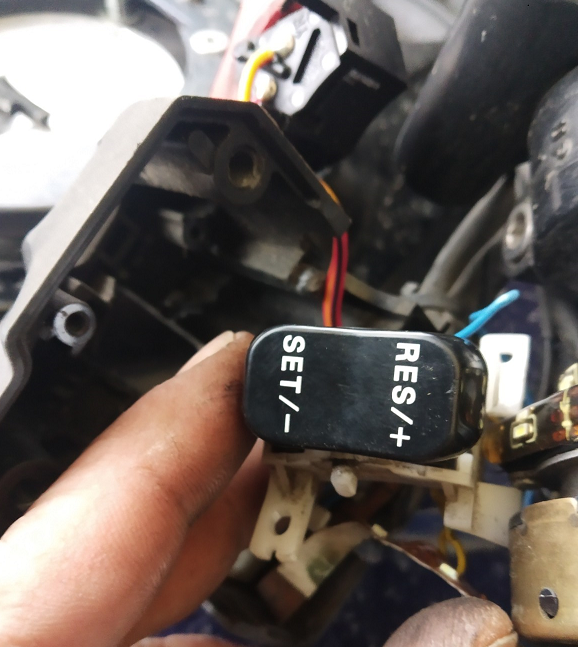

Now we have removed the old pushbutton and we can now place the new pushbutton

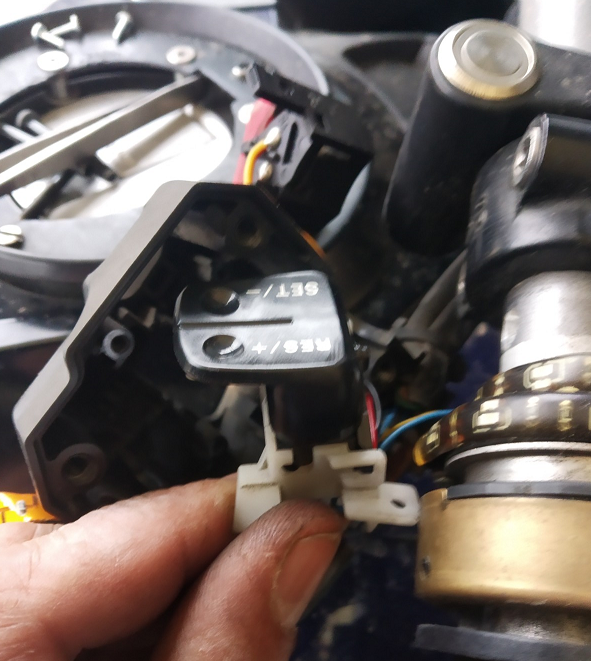

Now you can place the black plastic of the cruise control button on the two microswitches of - +

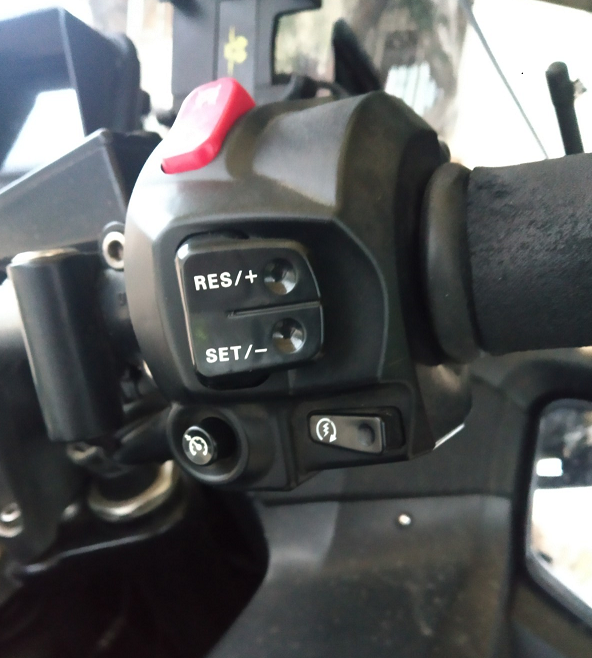

Finally, as we can see, we have the new result
Only motorcyclists know why dogs stick their head out the car window.


Offline Dan66

  • Trophy Pro
  • ***
  • Posts: 110
    • View Profile
  • Bike: 2014 Trophy SE
  • City / Town: Kansas City metro
  • Country: USA
Gettin was selling the right switch-cube.  Don't know if he still has.  I thought about it but the work just wasn't worth the benefit.  Once I get it set the reach isn't an issue.
