Battery
« on: June 24, 2014, 04:56:19 am »
Ok guys.. I have a new trophy 2014.. the other day after a short 45 min trip..
when I started it the display noted low voltage.. triing to understand why. the battery is sealed and it is ridden almost every day..
Anyone have any issues with this.. about 8200 miles on bike

thanks Phil teal1500@yahoo.com

Offline TerryB

  • Trophy Member
  • **
  • Posts: 38
    • View Profile
  • Bike: 2014 Trophy SE
  • City / Town: Valencia, CA
  • Country: USA
Re: Battery
« Reply #1 on: June 24, 2014, 05:28:12 am »
Hi Phil,

I have read many different discussions regarding this issue. I was also getting this warning randomly, along with other random electrical issues. I finally pulled the battery and noticed it was not like any other Yuasa YTX20L-BS that I have owned (the same battery was used on my Honda VTX 1800).

I ordered a new battery on Amazon, set it up and charged it properly, installed and all my issues went away. I am not saying this will solve your issue, but it definitely fixed my issues.

I am not sure if this battery came from Triumph England or was dealer provided, but in any case it was definitely different. Different markings, no "Made In U.S.A.", different locations for the fill holes, etc.

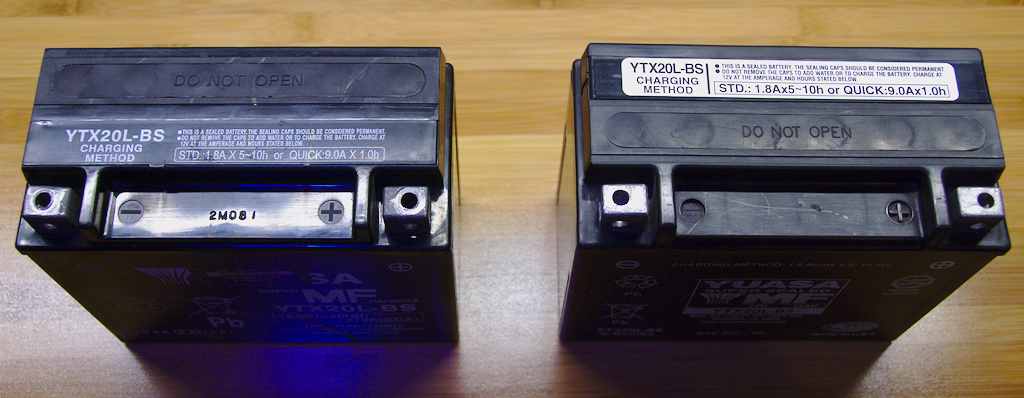

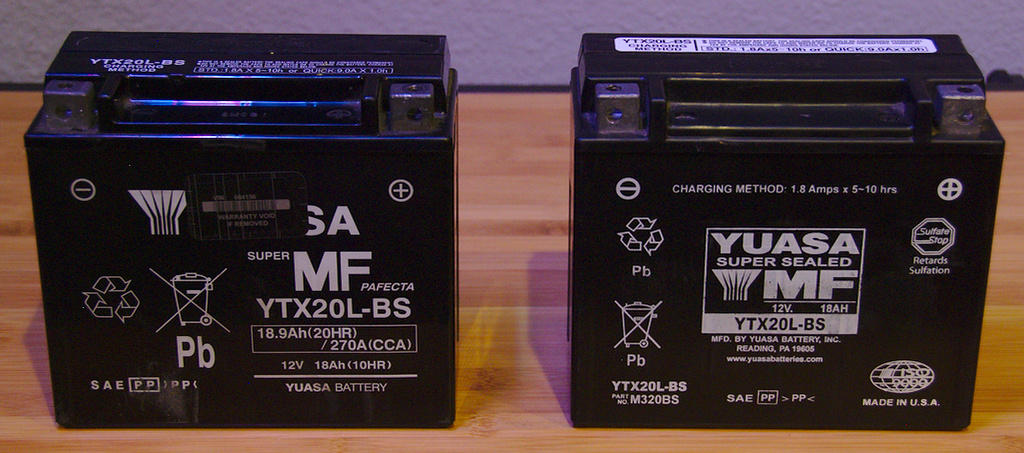

Here are some photos. On the left is my stock Trophy battery, on the right is a standard battery that I purchased.



Motorcycle and me, Motorcycle set me free - Daniel Ash

Offline Coconut

  • Trophy God
  • *****
  • Posts: 9480
    • View Profile
  • Bike: 2017 Trophy SE
  • City / Town: South Birmingham
  • Country: UK
Re: Battery
« Reply #2 on: June 24, 2014, 09:29:40 am »
Interesting !

I wouldn't think the differences in labelling give much cause for concern,
but the whole top of the battery is different  :084:

There have been a number of issues reported of apparantly "duff" batteries.

I wonder if the type that failed on you is the same as everyone elses that failed,
and has now been updated by Yuasa to the version shown in your other Photo,
or worse, a batch of "fake" batteries somehow got into the supply chain to Triumph  :012: ???

Yuasa's main web site has a Contact Form -
Is it worth making an enquiry with them and sending them the Photo's ?



Offline TerryB

  • Trophy Member
  • **
  • Posts: 38
    • View Profile
  • Bike: 2014 Trophy SE
  • City / Town: Valencia, CA
  • Country: USA
Re: Battery
« Reply #3 on: June 24, 2014, 03:14:32 pm »
I did a little more research. The stock battery does seem to be a legit Yuasa battery from the Yuasa UK division. I was able to find this version of the battery on various UK websites.

http://www.mdsbattery.co.uk/shop/productprofile.asp?ProductGroupID=1307

I guess I just got a bad battery along with many others.
Motorcycle and me, Motorcycle set me free - Daniel Ash

Offline w8d4it

  • Trophy God
  • *****
  • Posts: 5337
    • View Profile
  • Bike: 2013 Triumph Trophy
  • City / Town: Houston Texas
  • Country: USA
Re: Battery
« Reply #4 on: June 24, 2014, 06:52:21 pm »
The original batteries come with a code on them designating them as the original battery.  If you can't find it ask your Triumph dealer to help you.  He shouldn't charge you anything.
Proudly Riding Triumph Since 1968
2013 Triumph Trophy SE
2001 Sprint 955 ST

Offline rider6661

  • Trophy Member
  • **
  • Posts: 18
    • View Profile
  • Bike: trophy
  • City / Town: rio vista
  • Country: USA
Re: Battery
« Reply #5 on: July 09, 2014, 03:48:14 pm »
mine went 600 miles before it went...was told the audio module is faulty and drains the battery
