Electricity in a top case
« on: April 25, 2015, 03:01:59 am »

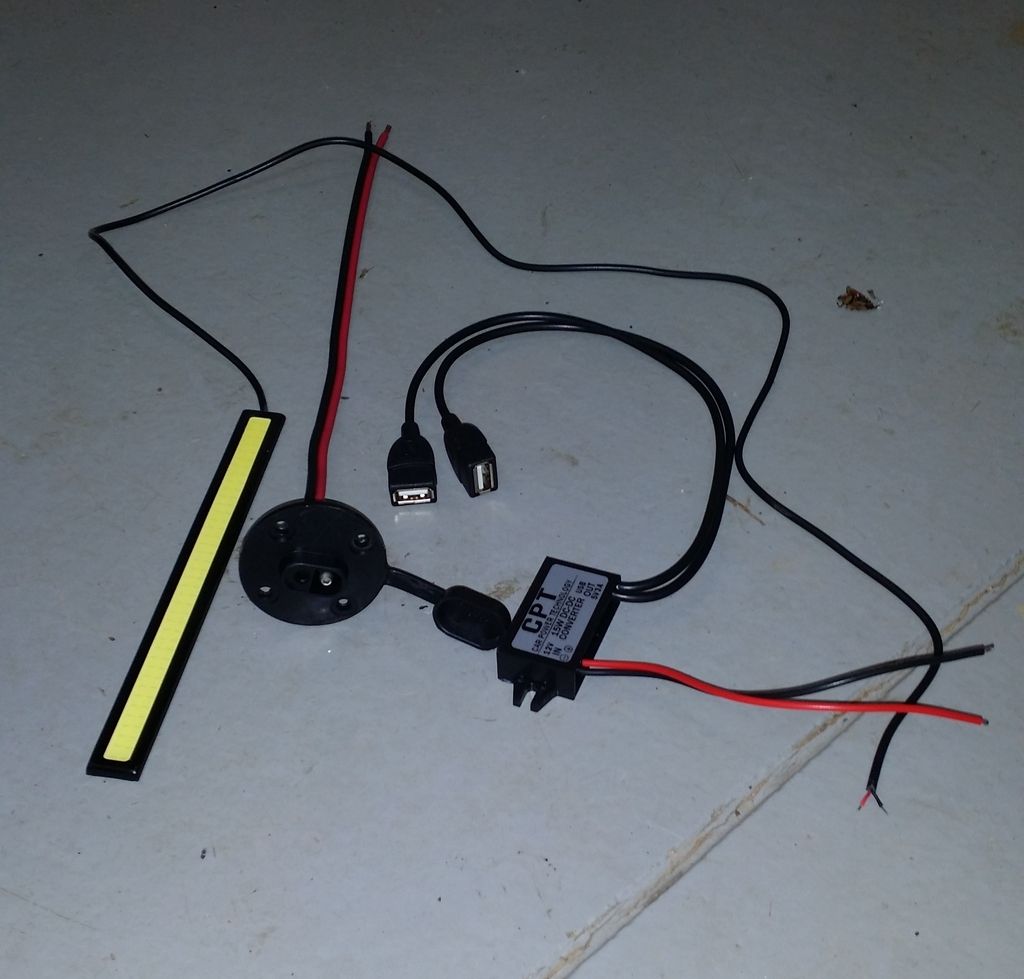

After adding a Shad top case to the Queen Mum, I caught a dose of envy.  The factory case has a USB charger.  I had to out do the factory.  Ebay is my usual one stop shopping store and here's what I scored:

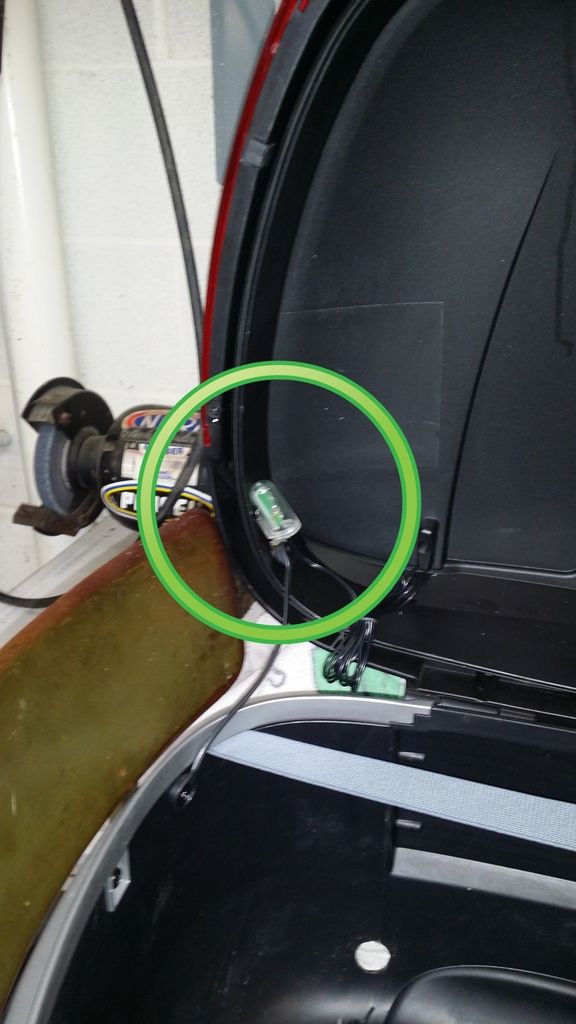

There's a waterproof flanged connector, an LED light strip, a dual 12v/USB converter, and not pictured is a mercury tip switch.  Here's a shot of where the mercury switch was mounted:

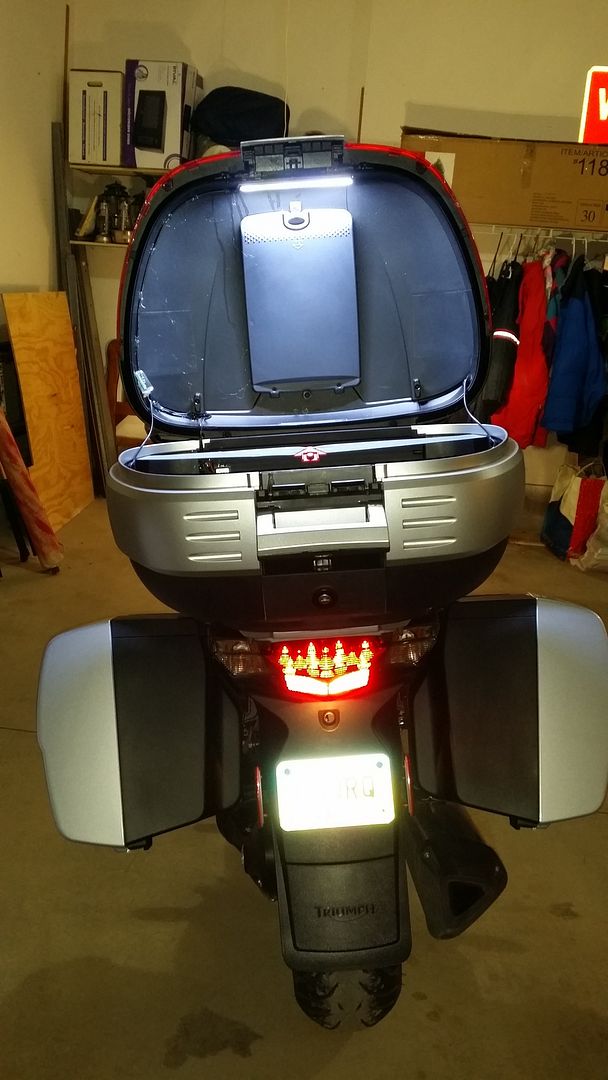

When the lid is closed, the circuit is open.  Open the lid and here's what you see:

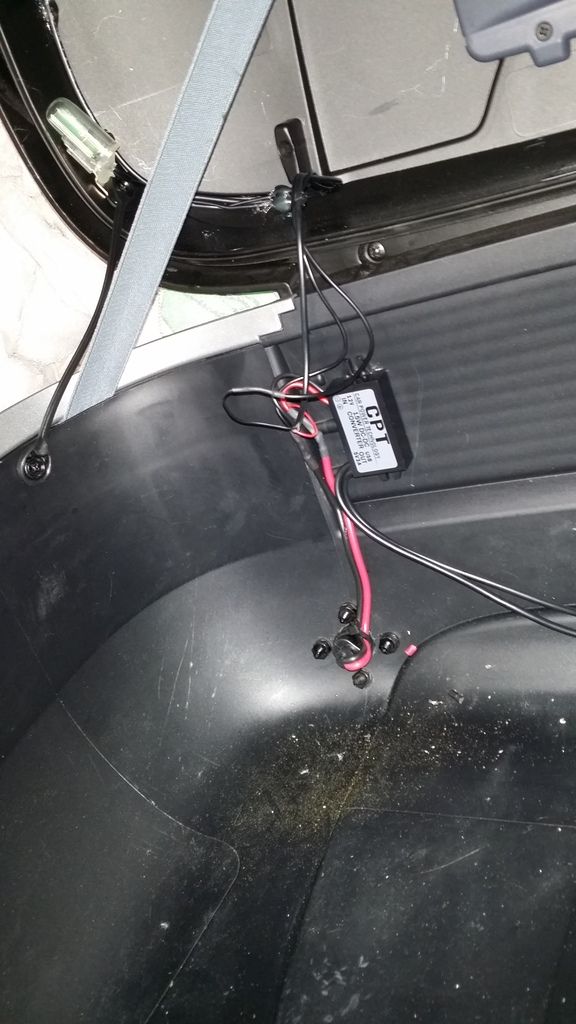

To install the goodies, I drilled a 3/4" hole in the lower front edge for the flanged connector.  It's attached with black nylon screws and sealed with silicone.  Inside, I used hot glue to mount the USB adapter and secure the wires.  I bought a short Powerlet cable to run from the outlet on the left rear of the bike to the top case.  All in all, there's less than $50 invested.  The Powerlet cable was by far the most costly item at about $25.





Hot glue was used to secure the loose wires to the case after I took this photo.  Next project is to rewire the outlet on the bike so that it's got power when the ignition is on even if the engine isn't running.
~Crim~

Offline cropbiker

  • Trophy God
  • *****
  • Posts: 4934
  • Midlands biker
    • View Profile
  • Bike: Triumph Trophy SE
  • City / Town: Worcester
  • Country: UK
Re: Electricity in a top case
« Reply #1 on: April 25, 2015, 11:28:30 am »
Looks a nice bright light! Very useful. Is there a chance the Mercury tip switch may have the light going on and off in the case while riding potentially causing extra, admittedly minimal, current draw?
Triumph Trophy! Not for every Tomaz, Dieter or Herman!🇬🇧

Offline gwcrim

  • Trophy Pro
  • ***
  • Posts: 108
    • View Profile
  • Bike: 2014 Trophy, et. al.
  • City / Town: Steubenville Ohio
  • Country: USA
Re: Electricity in a top case
« Reply #2 on: April 25, 2015, 02:54:23 pm »
Yes, possibly.  Under extremely hard braking, very steep downhills, and stoppies for sure!
~Crim~

Offline trophied

  • Trophy God
  • *****
  • Posts: 4502
    • View Profile
  • Bike: 2013 Trophy SE
  • City / Town: New Braunfels, Tx
  • Country: USA
Re: Electricity in a top case
« Reply #3 on: April 25, 2015, 03:30:12 pm »
Nice work and good pictures!  An excellent solution for other than the factory option.  :028:
One of the Founding Members of the Twisted Trophies

Offline w8d4it

  • Trophy God
  • *****
  • Posts: 5337
    • View Profile
  • Bike: 2013 Triumph Trophy
  • City / Town: Houston Texas
  • Country: USA
Re: Electricity in a top case
« Reply #4 on: April 27, 2015, 05:10:50 am »
Wow. That's good looking and utilitarian.  Me I just keep  a flashlight in the trunk.  I may have to rethink things.
Proudly Riding Triumph Since 1968
2013 Triumph Trophy SE
2001 Sprint 955 ST

Offline jofo

  • Trophy Member
  • **
  • Posts: 57
    • View Profile
  • Bike: TTSE Blue
  • City / Town: Paris
  • Country: France
Re: Electricity in a top case
« Reply #5 on: April 27, 2015, 08:38:35 am »
Excellent  :152: :152: :047:

Does anyone have an idea doing the same with the stock top case ?

Jofo
Before I owned a BMW... But that was before...

Offline gwcrim

  • Trophy Pro
  • ***
  • Posts: 108
    • View Profile
  • Bike: 2014 Trophy, et. al.
  • City / Town: Steubenville Ohio
  • Country: USA
Re: Electricity in a top case
« Reply #6 on: April 27, 2015, 02:00:41 pm »
I haven't seen a Triumph case but the mercury switch and light only cost about $5 each. There's probably a way to rig it somehow.
~Crim~

Offline cropbiker

  • Trophy God
  • *****
  • Posts: 4934
  • Midlands biker
    • View Profile
  • Bike: Triumph Trophy SE
  • City / Town: Worcester
  • Country: UK
Re: Electricity in a top case
« Reply #7 on: April 27, 2015, 07:33:19 pm »
With the Triumph case it should be even easier as you already have power to the case that comes on with the key!

When I get home from holiday I am going to look into mounting to high level tail, stop and indicator lights to a Trophy top box so I will be taking a look shortly!
Triumph Trophy! Not for every Tomaz, Dieter or Herman!🇬🇧
