    Side Stand Modification
    on: Jun 08, 2015, 01.19 am
    Jun 08, 2015, 01.19 am

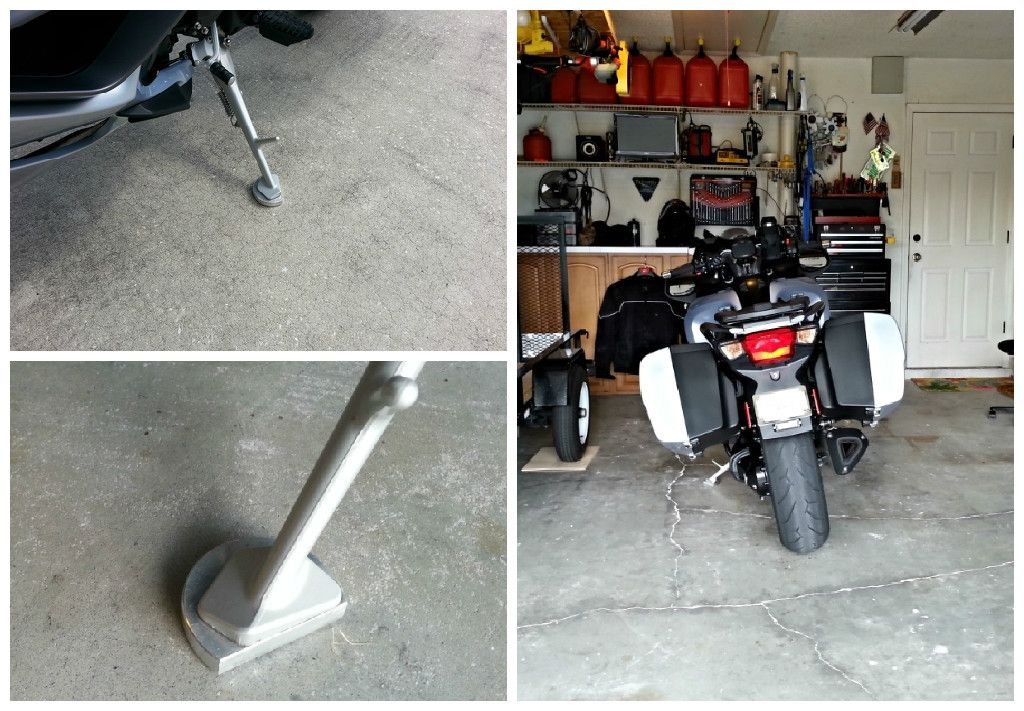

    A couple of months ago I mentioned that I thought the side stand on the trophy was a little short, and the lean angle while on the stand a little excessive. The angle was so much that I couldn't sit my helmet on the bike without it rolling off. I started looking for a stand extension for the Trophy that would also give it a little larger footprint, but was not able to find one that did both. So, about a month ago I made one that I cut from an aluminum block. I cut it 3" round and 1/2" thick. I had to cut the left side of the puck to fit flush on the left side of the side stand to prevent it from hitting the shaft housing when the stand was in the up position. I was able to reduce the lean angle and now have the angle where I feel it should be. Also, a little larger footprint to help prevent it from sinking in soft surfaces. This is what it looks like and the new lean angle.

  • Offline janfmiller   us

    • Trophy Master  ‐    960
    • ****
      #1

    Offline janfmiller

    • Trophy Master
    • ****
    • Posts: 960
    • No such thing a bad weather; just wrong clothes!
    • Bike: Was: 2013 Trophy SE
    • City / Town: Superior Wisconsin
    • Country: us
    Re: Side Stand Modification
    Reply #1 on: Jun 08, 2015, 01.47 am
    Jun 08, 2015, 01.47 am
    Great!  How did you attach it to the sidestand???
    1977 Suzuki TS-185
    1974 Kawasaki Z-1 903
    2021 Honda Africa Twin Adventure Sports ES NON-DCT
    2016 Yamaha FJ-09

  • Offline Zebraranger   us

    • Trophy Pro  ‐    430
    • ***
    • Topic Author
    • #2

    Offline Zebraranger

    • Trophy Pro
    • ***
    • Topic Author
    • Posts: 430
    • Bike: 16 Moto Guzzi Griso
    • Country: us
    Re: Side Stand Modification
    Reply #2 on: Jun 08, 2015, 12.54 pm
    Jun 08, 2015, 12.54 pm
    I used a 6000 psi two part epoxy.

  • Offline GarminDave   gb

    • Trophy Master  ‐    1349
    • ****
      #3

    Offline GarminDave

    • Trophy Master
    • ****
    • Posts: 1349
    • Bike: Trophy SE
    • City / Town: South Shields
    • Country: gb
    Re: Side Stand Modification
    Reply #3 on: Jun 08, 2015, 01.14 pm
    Jun 08, 2015, 01.14 pm
    Nice Job.

     :451:

    I feel obliged to mention that there are only two places for a Helmet.

    1. On your head.
    2.  On the floor.

    I have seen too many very expensive helmets descend to earth at 32ft/sec/sec with devastating commotion from the owner.  Please don't put helmets on seats at whatever lean angle. Please.

    Later

    Dave
    Love, light, and kindness,

    Dave

    2016 TTSE

  • Offline kniterider   us

    • Trophy Pro  ‐    463
    • ***
      #4

    Offline kniterider

    • Trophy Pro
    • ***
    • Posts: 463
    • Dont smoke, gamble or drink BUT I DO RIDE
    • Bike: 14 TTSE 86 GL1200
    • City / Town: Dunkirk, Md
    • Country: us
    Re: Side Stand Modification
    Reply #4 on: Jun 08, 2015, 01.51 pm
    Jun 08, 2015, 01.51 pm
    *Originally Posted by GarminDave [+]
    Nice Job.

     :451:

    I feel obliged to mention that there are only two places for a Helmet.

    1. On your head.
    2.  On the floor.

    I have seen too many very expensive helmets descend to earth at 32ft/sec/sec with devastating commotion from the owner.  Please don't put helmets on seats at whatever lean angle. Please.

    Later

    Dave

    1 acceleration of gravity = 32.17404855643 feet per (second squared)
    A nasty weather day riding is still better than any day working

  • Offline kniterider   us

    • Trophy Pro  ‐    463
    • ***
      #5

    Offline kniterider

    • Trophy Pro
    • ***
    • Posts: 463
    • Dont smoke, gamble or drink BUT I DO RIDE
    • Bike: 14 TTSE 86 GL1200
    • City / Town: Dunkirk, Md
    • Country: us
    Re: Side Stand Modification
    Reply #5 on: Jun 08, 2015, 01.54 pm
    Jun 08, 2015, 01.54 pm
     :157: :157: Then add the speed at which you left the motorcycle after initial impact   hmmm,  wonder what my helmet was doing when that ford truck full of rednecks ran into me and totaled my 2012 wing. But what ever the final speed at final stop it did its job
    A nasty weather day riding is still better than any day working

  • Offline GarminDave   gb

    • Trophy Master  ‐    1349
    • ****
      #6

    Offline GarminDave

    • Trophy Master
    • ****
    • Posts: 1349
    • Bike: Trophy SE
    • City / Town: South Shields
    • Country: gb
    Re: Side Stand Modification
    Reply #6 on: Jun 08, 2015, 02.35 pm
    Jun 08, 2015, 02.35 pm
    "1 acceleration of gravity = 32.17404855643 feet per (second squared)"

    I stand correct kniterider.

    Later

    Dave
    Love, light, and kindness,

    Dave

    2016 TTSE

  • Offline Studley   ca

    • Trophy Pro  ‐    376
    • ***
      #7

    Offline Studley

    • Trophy Pro
    • ***
    • Posts: 376
    • Bike: 2015 Trophy SE
    • City / Town: Vancouver
    • Country: ca
    Re: Side Stand Modification
    Reply #7 on: Jun 08, 2015, 04.25 pm
    Jun 08, 2015, 04.25 pm
    *Originally Posted by GarminDave [+]

    I feel obliged to mention that there are only two places for a Helmet.

    1. On your head.
    2.  On the floor.


    A helmet is a ground seeking device, nuff said

    Studley
