    Now you see me........
    on: Aug 23, 2016, 03.17 pm
    Aug 23, 2016, 03.17 pm

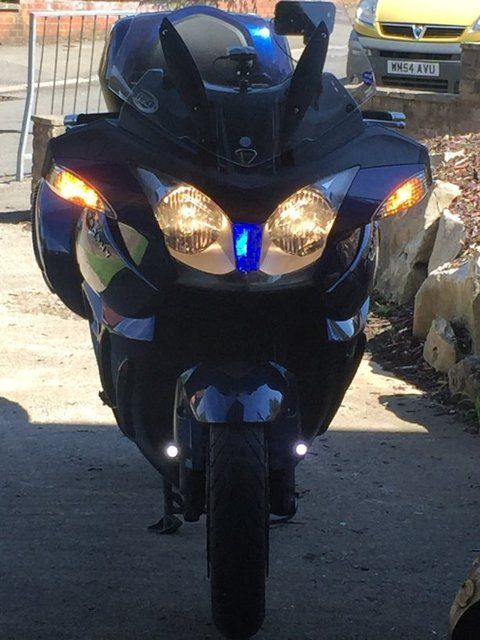

    Blue "Parking Light" - Check

    Low level LED spots - Check

    Turn Signal "Day Running" conversion - Check

    As a last resort, a Nautilus Air Horn!

    Oh, - and as a final last resort, a Dash Cam



    Last Edit: Aug 23, 2016, 04.15 pm by Tiny Tim
    The world is divided into 10 types. Those who understand the binary system and those who don't.

    Regards

    Tiny Tim

  • Offline Mystical Cat

    • Trophy Pro  ‐    134
    • ***
      #1

    Offline Mystical Cat

    • Trophy Pro
    • ***
    • Posts: 134
    • Bike: 2013 Trophy SE
    • City / Town: East Bay, CA
    Re: Now you see me........
    Reply #1 on: Aug 23, 2016, 08.29 pm
    Aug 23, 2016, 08.29 pm
    Looking awesome!   :046:

    Edit - what is this "Day running" conversion you speak of?
    "Most motorcycle problems are caused by the nut that connects the handlebars to the saddle." ~Unknown

  • Offline spacca

    • Trophy Member  ‐    14
    • **
      #2

    Offline spacca

    • Trophy Member
    • **
    • Posts: 14
    • Bike: trophy
    • City / Town: reading
    Re: Now you see me........
    Reply #2 on: Aug 23, 2016, 09.30 pm
    Aug 23, 2016, 09.30 pm
    hi, where did you fit the nautilus, which dash cam, I'm looking for rear facing too if you can help and did you upgrade your headlight bulbs?

  • Offline Tiny Tim

    • Trophy Member  ‐    79
    • **
    • Topic Author
    • #3

    Offline Tiny Tim

    • Trophy Member
    • **
    • Topic Author
    • Posts: 79
    • Bike: 2015 Trophy
    • City / Town: Chepstow
    Re: Now you see me........
    Reply #3 on: Aug 24, 2016, 09.15 am
    Aug 24, 2016, 09.15 am
    Day Running Lights Conversion

    This involves replacing the front indicators (turn signals to the Colonials) with a changeover relay with a 6 ohm resistor across it to maintain the correct flash rate. The existing indicator bulb is then fed from the "parking light" with one leg of this feed going through the normally closed contact of the relay.

    The result of this is the indicator bulb is lit whenever the ignition is switched on. When the turn signal is operated, the relay operates in time and the normally closed contact flashes the indicator in reverse cadence.

    There is room inside the mirror pods for the relay and resistor.

    If anyone's interested, I'll do a proper "How To". Let me know.


    Dash Cam

    See Ebay Item 131755856577 as an example. Whilst this unit is not weatherproof, it so dry behind
    the screen as to not present a problem.

    Around £15.00. It won't successfully attach to the screen as, when the screen parks, there's not enough room; moving the screen position moves the camera image and if fitted via the suction cup it's too easy to be stolen.

    The base of the camera has a standard threaded camera mount so I fitted a bracket and mount in the location of the Sat Nav blank plate. It's powered via the Glove Box socket. This means that it automatically turns on and off. The length of recording is governed by the size of the memory card. In case of an incident either unplug the unit or remove the memory card to prevent any wanted images being overwritten.

    Technically, mounted "as above", images are recorded upside down but this is easilly flipped in Movie Maker.

    Nautils Mounting


    I followed a previous "How To" in this forum mounting the Nautilus on the right hand side where the existing "neep neep" is fitted.
    Last Edit: Aug 24, 2016, 09.21 am by Tiny Tim
    The world is divided into 10 types. Those who understand the binary system and those who don't.

    Regards

    Tiny Tim

  • Offline RocketSteve   gb

    • Trophy Master  ‐    604
    • ****
      #4

    Offline RocketSteve

    • Trophy Master
    • ****
    • Posts: 604
    • Bike: TTSE & Boss Hoss
    • City / Town: Bideford
    • Country: gb
    Re: Now you see me........
    Reply #4 on: Aug 24, 2016, 01.39 pm
    Aug 24, 2016, 01.39 pm
    To test a man's character, give him (horse) power.

  • Offline cropbiker   gb

    • Trophy God  ‐    4934
    • *****
      #5

    Offline cropbiker

    • Trophy God
    • *****
    • Posts: 4934
    • Midlands biker
    • Bike: Triumph Trophy SE
    • City / Town: Worcester
    • Country: gb
    Re: Now you see me........
    Reply #5 on: Aug 24, 2016, 08.26 pm
    Aug 24, 2016, 08.26 pm
    Does it play Colonel Bogey?
    Triumph Trophy! Not for every Tomaz, Dieter or Herman!🇬🇧

  • Offline RocketSteve   gb

    • Trophy Master  ‐    604
    • ****
      #6

    Offline RocketSteve

    • Trophy Master
    • ****
    • Posts: 604
    • Bike: TTSE & Boss Hoss
    • City / Town: Bideford
    • Country: gb
    Re: Now you see me........
    Reply #6 on: Aug 25, 2016, 10.34 am
    Aug 25, 2016, 10.34 am
    *Originally Posted by cropbiker [+]
    Does it play Colonel Bogey?

    That would certainly get you noticed  :156:

    But probably not that particular tune  :164:
    To test a man's character, give him (horse) power.

  • Offline cecilt   gb

    • Trophy Pro  ‐    311
    • ***
      #7

    Offline cecilt

    • Trophy Pro
    • ***
    • Posts: 311
    • Bike: Triumph Trophy SE
    • City / Town: Edinburgh
    • Country: gb
    Re: Now you see me........
    Reply #7 on: Aug 25, 2016, 05.43 pm
    Aug 25, 2016, 05.43 pm
    That looks great, and I'm sure it will improve your visibility, but is it legal to fit a blue light to a bike in the UK? If so, I'd like a flashing one!
