    Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    on: Aug 08, 2018, 11.30 am
    Aug 08, 2018, 11.30 am

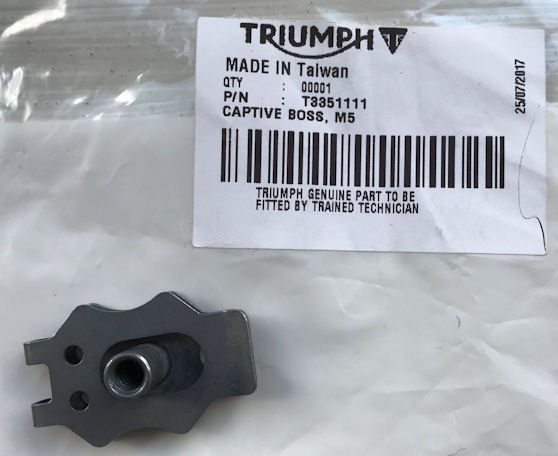

    The Battery Cover and Glove Box are retained by use of a "Captive Boss",
    Triumph Part Number T3351111.  They cost GBP 3.65 each :

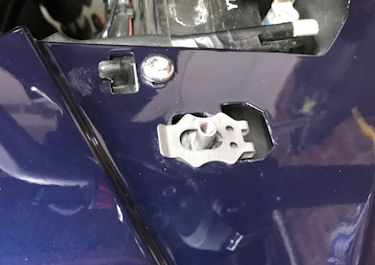

    The "Captive Boss" clamps around a partial cut out in the the upper Fairing :



    The Battery Cover or Glove Box are then located above the Captive Boss
    and a Fairing Bolt is inserted to secure it in place :




    The Fairing bolts should be tightened to JUST 3 Nm  :169:
    ( Which is NOT very tight at all  ! ).

    IF they are overtightened, or the bolt is allowed to corrode in place in the Captive Boss,
    then it is LIKELY that the three small spot welds holding the Captive Boss components together,
    will break apart when you try to remove the screw  :138: .....



    This can then mean that the only way of removing the cover, is to destroy it by cutting it off !

    The Captive Boss cannot ( easily ) be accessed from underneath.
    The Spire Bolt type section of the Captive Bolt remains sandwiched around the Fairing Panel,
    while the head of the "Boss" part remains in place and just spins freely when you try to unscrew it.

    Attempts to remove the parts forcibly can also result in damage
    to the Fairing panel where the Captive Boss is sandwiched. :157:

    Worse case scenario : New Captive Boss @ 3.65, New Battery Box Cover @ 25.00 approx,
    and a new Upper Fairing Panel kit : Approx 210.00 = 240.00 Approx !  :005:

    Add another 10.00 approx if it's the Glove Box that has to be replaced !

    Moral : DON'T overtighten the securing screws ! ! !
    ( And a bit of grease on the threads will help too ! )

    Cheers  :821:





    Last Edit: Mar 21, 2021, 08.17 am by Coconut

  • Offline Trophy Bike

    • Trophy Pro  ‐    340
    • ***
      #1

    Offline Trophy Bike

    • Trophy Pro
    • ***
    • Posts: 340
    • Bike: 2013 Trophy
    • City / Town: New York
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #1 on: Aug 08, 2018, 01.56 pm
    Aug 08, 2018, 01.56 pm
    Ahh.  A point I will take to heart.  I was just in there replacing a battery and found that the last person that worked on the bike put a dab of grease on the threads of that screw and a piece of tape across the top of the captive boss to gently secure it to the faring and keep it from moving about too much.  I thought that was a good idea.  Your experience may explain why the mechanic did that!  Thank you for the "heads up".

  • Offline trophied   us

    • Trophy God  ‐    4913
    • *****
      #2

    Offline trophied

    • Trophy God
    • *****
    • Posts: 4913
    • Bike: 2013 Trophy SE
    • City / Town: New Braunfels, Tx
    • Country: us
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #2 on: Aug 08, 2018, 02.55 pm
    Aug 08, 2018, 02.55 pm
    Good information.  I would never have imagined that would occur.
    Thanks Alan. :028:
    One of the Founding Members of the Twisted Trophies

  • Offline Coconut   gb

    • Trophy God  ‐    10005
    • *****
    • Topic Author
    • #3

    Offline Coconut

    • Trophy God
    • *****
    • Topic Author
    • Posts: 10005
    • Bike: 2017 Trophy SE
    • City / Town: South Birmingham
    • Country: gb
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #3 on: Aug 08, 2018, 03.46 pm
    Aug 08, 2018, 03.46 pm
    Nor would I Glenn - you can imagine how I found out !  :164:

    ( Fortunately still under warranty ! )

    Last Edit: Feb 27, 2020, 07.11 pm by Coconut

  • Offline trophied   us

    • Trophy God  ‐    4913
    • *****
      #4

    Offline trophied

    • Trophy God
    • *****
    • Posts: 4913
    • Bike: 2013 Trophy SE
    • City / Town: New Braunfels, Tx
    • Country: us
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #4 on: Aug 08, 2018, 05.06 pm
    Aug 08, 2018, 05.06 pm
    Think I'll take care of that very shortly.
    One of the Founding Members of the Twisted Trophies

  • Offline 1675   gb

    • Trophy Master  ‐    950
    • ****
      #5

    Offline 1675

    • Trophy Master
    • ****
    • Posts: 950
    • Bike: Trophy
    • City / Town: Spennymoor
    • Country: gb
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #5 on: Aug 08, 2018, 08.17 pm
    Aug 08, 2018, 08.17 pm
    Oh, I had this trouble about 4 years ago, when my banana handed dealer fastened the battery cover down with a 3/4" drive socket and a 3 foot  bar. I only discovered this when I had to remove the battery cover to find the screw turning and the spot welds all broken. He also managed to badly damage 3 back rims and 2 fronts when fitting new tyres and really did deserve to loose the franchise. I managed to drill off the domed screw head, which wasn't easy as it turned freeky, and once it was out should have returned to him and stucķ the jagged remains where the sun dont shine

  • Offline ladisney   us

    • Trophy Member  ‐    47
    • **
      #6

    Offline ladisney

    • Trophy Member
    • **
    • Posts: 47
    • Bike: 17 Trophy SE
    • City / Town: Pleasant Hill, Iowa
    • Country: us
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #6 on: Aug 14, 2018, 03.38 am
    Aug 14, 2018, 03.38 am
    Whenever I remove or replace mine I use a screwdriver with an allen insert.  Works like a charm and avoids over tightening. Even the allen wrench included in the "tool kit" allows too much torque.

  • Offline Guitarman   gb

    • Trophy Pro  ‐    166
    • ***
      #7

    Offline Guitarman

    • Trophy Pro
    • ***
    • Posts: 166
    • Bike: Phantom Black TTSE
    • City / Town: Inverness
    • Country: gb
    Re: Glove Box & Battery Cover "Captive Boss" - a Cautionary Tale !
    Reply #7 on: Aug 14, 2018, 10.10 am
    Aug 14, 2018, 10.10 am
    Nice one I have just been in there on both sides and am now going out to apply some lubrication & tape, this forum is excellent for information.

    Top man Coconut  :062:





    tweedy-bunch
