    maybe stupid question but I need to ask
    on: Sep 08, 2019, 08.21 pm
    Sep 08, 2019, 08.21 pm
    Hello all !!  https://www.triumph-trophy.com/Smileys/light/158.gif

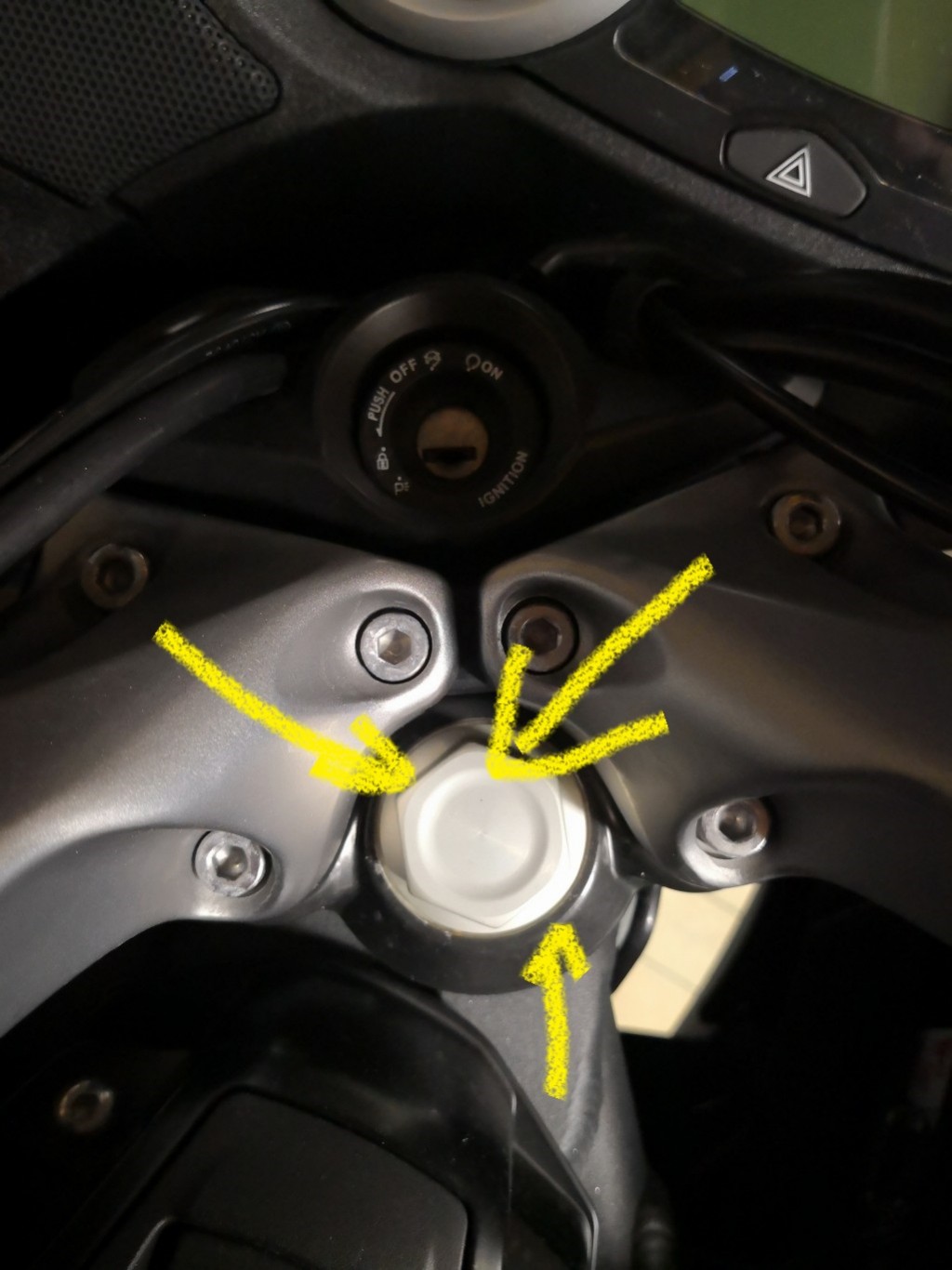

    need to know if this cap is doing some purpose ( like holding handlebars  and etc  ) or is just there because is very good looking and that can be easy taken off if needed

    https://cdn.img.triumph-trophy.com/IMG_20190520_211341ad38074c50a6c63d.jpg

    Thx !!
    Never Ride Faster Than Your Angel Can Fly

  • Offline GavJ

    • Trophy Pro  ‐    261
    • ***
      #1

    Offline GavJ

    • Trophy Pro
    • ***
    • Posts: 261
    • Bike: R1250RT
    • City / Town: Strathaven
    Re: maybe stupid question but I need to ask
    Reply #1 on: Sep 08, 2019, 08.52 pm
    Sep 08, 2019, 08.52 pm
    This cap holds the top clamp onto the steering head, fairly important,,,,, I wouldn't ride with it missing 🤔

  • Offline Coconut   gb

    • Trophy God  ‐    10279
    • *****
      #2

    Offline Coconut

    • Trophy God
    • *****
    • Posts: 10279
    • Bike: 2017 Trophy SE
    • City / Town: South Birmingham
    • Country: gb
    Re: maybe stupid question but I need to ask
    Reply #2 on: Sep 08, 2019, 08.58 pm
    Sep 08, 2019, 08.58 pm
    That is the "Headstock Top Nut" and secures the Top Yoke ( which the Handlebars are bolted to )
    to the Steering Stem.

    If the Headstock Top Nut nut is removed, the Top Yoke complete with handlebars,
    can be lifted off the Steering stem.

    It should be tightened to 90Nm  :028:


  • Offline rpeters549   us

    • Trophy Master  ‐    750
    • ****
      #3

    Offline rpeters549

    • Trophy Master
    • ****
    • Posts: 750
    • Bike: 2015 Trophy SE
    • City / Town: Lowell, Or
    • Country: us
    Re: maybe stupid question but I need to ask
    Reply #3 on: Sep 09, 2019, 02.18 am
    Sep 09, 2019, 02.18 am
    Yup, what they said.
    Should you run in the unfortunate wire pinch separation breakage issue, that nut pulls the top part off the handle bars bolt to and contains the ignition set for the key.
    Year round rider here!

  • Offline DonVito

    • Trophy Member  ‐    21
    • **
    • Topic Author
    • #4

    Offline DonVito

    • Trophy Member
    • **
    • Topic Author
    • Posts: 21
    • Bike: Triumph Trophy 2014
    • City / Town: Skepplanda
    Re: maybe stupid question but I need to ask
    Reply #4 on: Sep 09, 2019, 09.14 pm
    Sep 09, 2019, 09.14 pm
    had  to ask because a had 2 bikes few years back and on both of them " the CAP" was just for the looks   and there was a nut that was  actually holding everything in the place underneath .
    Thx for your  time guys  and help
    Never Ride Faster Than Your Angel Can Fly
